SME5200 / SME5300 rotary cabinets and the SME5500 / BC230 cooler washer put flux scale back where it belongs — in a filtered sump — with documented, auditable cycles.
Customer-validated: performance reports from a Schneider factory trial are published below.

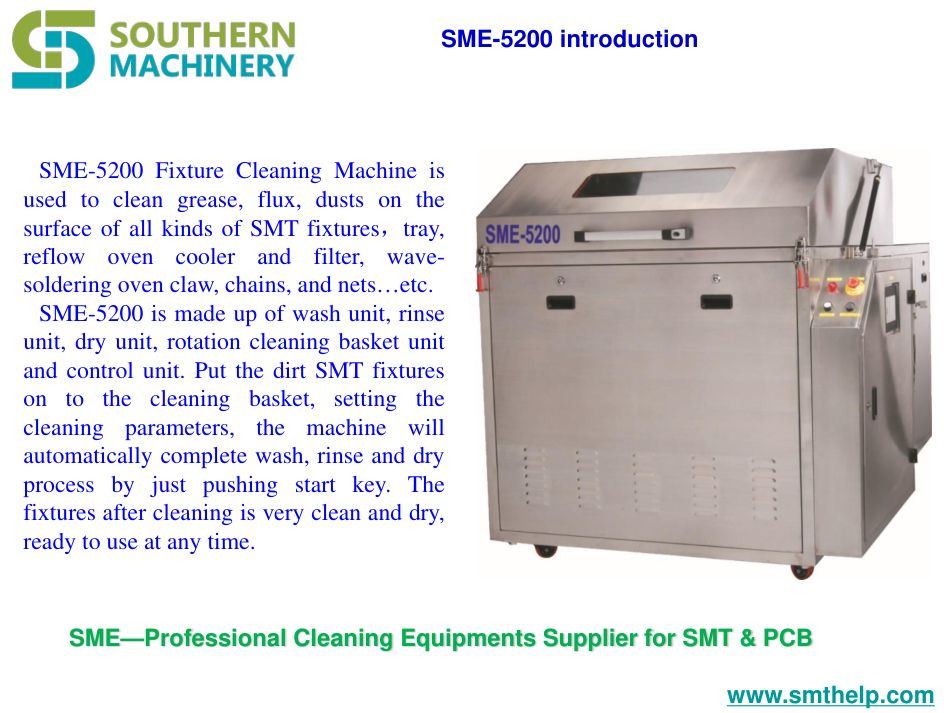

The workhorse of carrier hygiene: Ø1000 mm rotating basket, 720° spray coverage and a 3-stage filter ladder (2 mm / 100 μm / 20 μm) that strips flux scale from reflow towers, wave cassettes and conformal carriers. Independently validated at a Schneider factory — reports linked below.

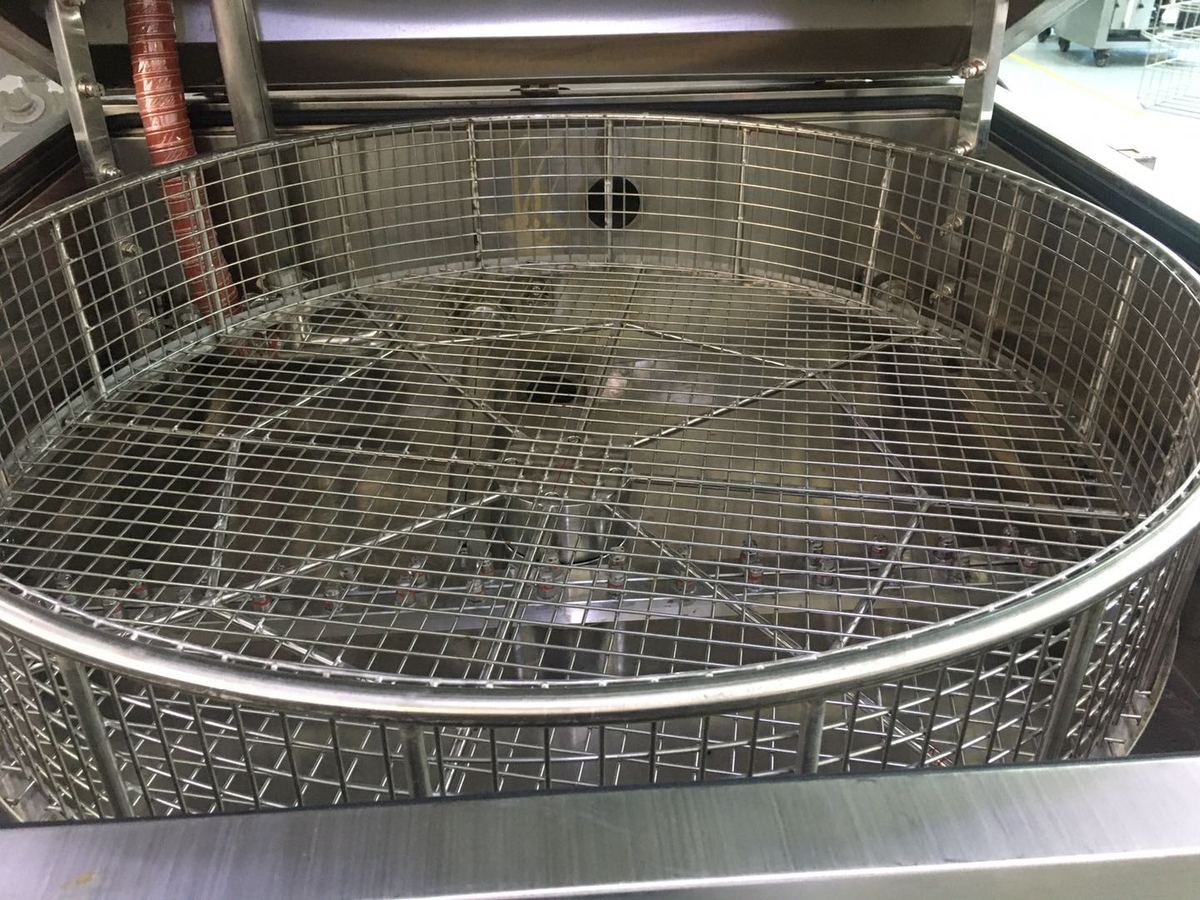

| Cleaning basket | Ø1000 mm × H200 mm rotary |
|---|---|
| Rinse tank | 80 L clear water |
| Filtration | Grade 1: 2 mm pump screen · Grade 2: 100 μm solids · Grade 3: 20 μm flux core |
| Coverage | All-aspect spray — composite stone, steel and aluminum carriers |
| Air supply | 0.5–0.7 MPa, 800–1000 L/min |
| Footprint | L1380 × W2000 × H1400 mm · 600 kg |
Source: SME5200 Fixture/Stencil Cleaning Machine 2021 datasheet + user manual 2020 + Technical Deep Dive, Southern Machinery.
The taller sibling for heavy wave-soldering cassettes and mixed fixture sets — same rotary-spray platform and filtration philosophy with expanded capacity.
| Cleaning basket | Ø1000 mm × H200 mm rotary (fixture-tall variant) |
|---|---|
| Spray pressure | Up to 6 kg/cm² clean-liquid pressure for thorough coverage |
| Filtration | 2 mm / 100 μm / 20 μm ladder, water recycling |
| Air supply | 0.5–0.7 MPa, 800–1000 L/min |
| Footprint | L1380 × W2000 × H1400 mm · 600 kg |
Source: SME5300 Fixture Cleaning Machine 2022 datasheet, Southern Machinery.
Stop scrubbing cooler fans by hand. A Ø1300 mm batch basket washes reflow coolers, fan modules and fin stacks with heated solution, 2 mm/100 μm/20 μm filtration and air-blow dry — recovering cooling capacity and noise margins.
| Basket | Ø1300 mm, clean height 450 mm — batch type |
|---|---|
| Filtration | 2 mm / 100 μm / 20 μm |
| Pressure | 4–5 kg/cm² wash/rinse |
| Air supply | 0.5–0.7 MPa, 400–600 L/min · blower drying |
| Footprint | L1750 × W2300 × H1450 mm |
Source: BC230 Reflow oven Cooler Cleaning Machine SPEC 2025 + SME5500 installation layout & presentation PDFs, Southern Machinery.
Purpose variants of the cabinet family for masking carriers (SPE/PVC), DEK/MPM squeegee blades (SCM-2200 / SME220) and screen frames (SCM3100/SME100 strippers) — documented in the Conformal Pallet Cleaning datasheet.
| Conformal carriers | Batch wash of masking fixtures & pallets |
|---|---|
| Squeegee cleaner | SCM-2200 / SME220 blade wash units |
| Screen stripping | SME100 developing & stripping machine |
Source: Conformal pallet Cleaning Machine datasheet; SCM-2200/SME220 & SME100 presentations, Southern Machinery.
Tell us your product mix and we will spec it — this section shows how we typically match lines to factories.
The default cabinet: fits SMT & wave pallets up to Ø1000×200 loads; consumables and spares are family-wide.
Higher fixtures and heavier stacks get the 6 kg/cm² spray treatment.
Dedicated basket geometry for cooler modules — removes the manual scrubbing task entirely.
Masking carriers, squeegee blades, screen frames: same water-based philosophy, adapted fixtures.
Validation reports below quantify before/after fixture weight and seat accuracy — the exact data quality teams ask for.
Typical site preparation for Southern Machinery aqueous cleaning equipment. Exact utilities for each model are in its manual.

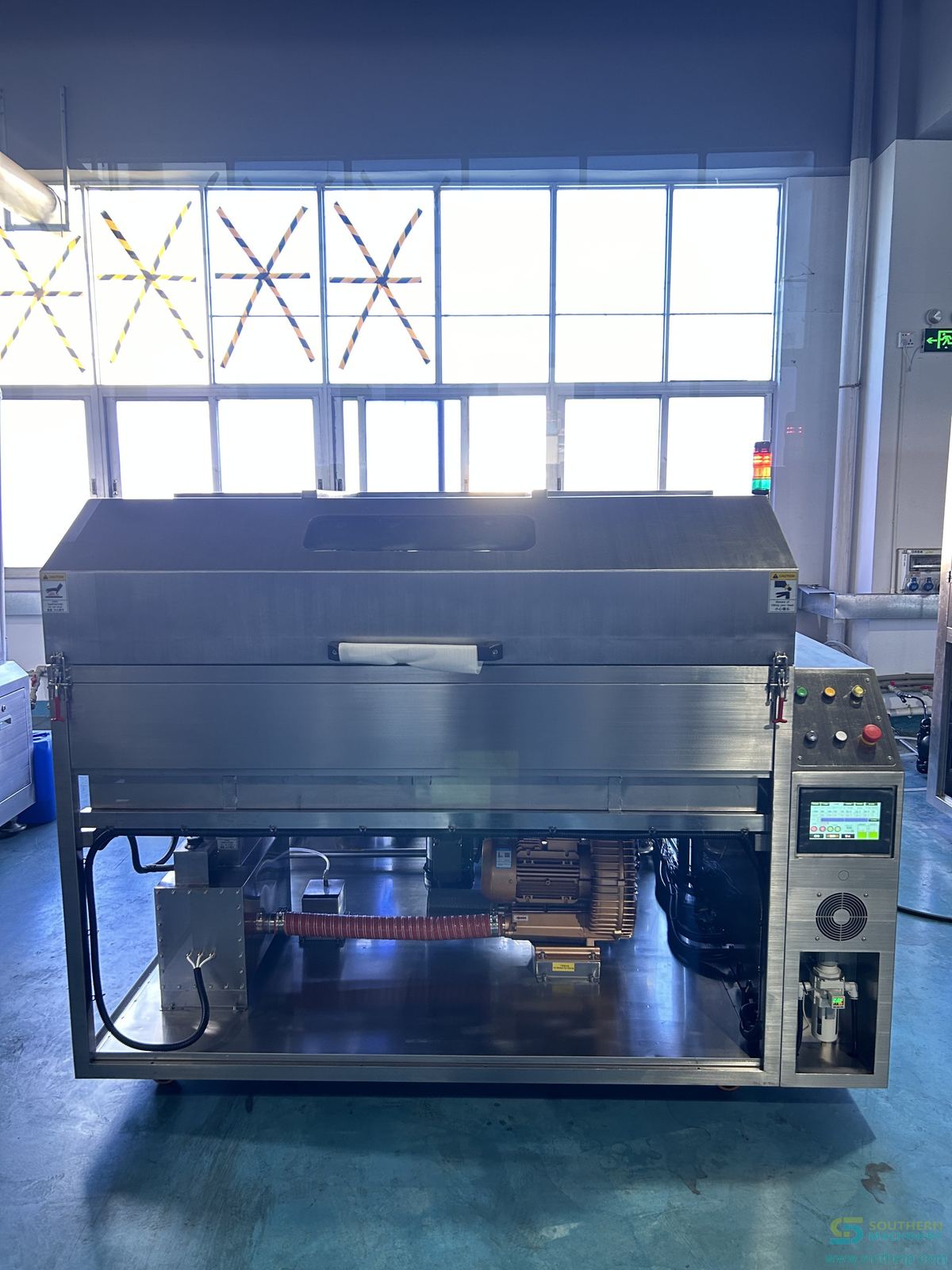

Level pad with basket-side clearance for load/unload trolleys.
Near floor drain; recycled sump keeps water use low.
0.5–0.7 MPa, 800–1000 L/min for spray assist & dry stage.
SME-5200 installation floor layout ships with the order (PDF below).
Send witness fixtures — we clean-test them and ship microscope records.
